·JPB型耙礦絞車 Scraprer winches

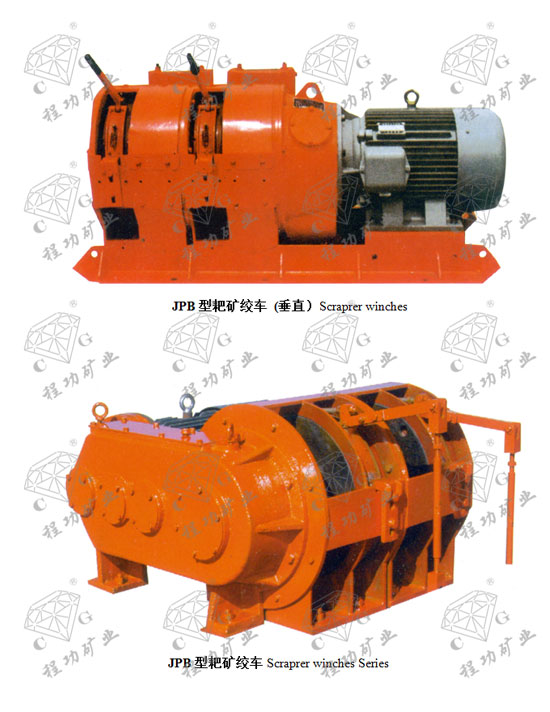

JPB型耙礦絞車 Scraprer winches

JPB系列耙礦絞車主要用于金屬礦煤及其它礦場的地下或露天礦石運搬及充填作業。主要用于水平耙運，也可用于傾坡耙運，不能作為提升設備。司機可以在絞車旁邊用手操縱，也可用距絞車數米到數十米處用按鈕實行距離操作。平行布置的耙礦絞車與PB系列耙斗裝巖機主機通用。

Series JPB Scraper Winches are mainly used in the underground or open pit of metal or other mines for the purpose oftransfering or filling or on a small slope,but not forl certical lifting or lowering. It can be operated manually or by remotecontrol with push buttonsfrom a distance of a few to doxens metres.

型號規格 Model		單位Uite	2JP-7.5 3JP-7.5	2JP-15 3JP-15	2JP-30 3JP-30	2JP-55 3JP-55	2JP-75	2JP-90	2JP-110	2JPP-17	2JPP-30
工作卷筒平均拉力 Average Puling Forceof Working Drum		KN	8	14	28	50	54	63	80	15	28
工作鋼繩平均速度 Average Speed of Working Rope		m/s	1	1.1	1.2	1.2	1.3	1.3	1.3	1.1	1.2
工作鋼繩直徑 Dameter of Working Rope		mm	9.3	12.5	15.5	18.5	20	23	24.5	14	17
工作卷筒容繩量 Rope Capacity if Working Drum		m	45	80	90	100	180	125	110	80	85
電動機功率 Revolutio power		kw	7.5	15	30	55	75	90	110	17	30
電動機轉速 Revolutio Speed		m/s	1440	1460	1470	1480	1480	1480	1480	1450	1450
外形尺寸Overall Dim.	長Length	mm	1210 1445	1525 1900	1685 2040	2070 2510	2350	2400	2600
	寬Widht	mm	565	660	380	1010	1515	1515	1515
	高Height	mm	490	620	735	890	1300	1300	1300
總重量 (不包括耙斗和滑輪) Total weight		kg	390 505	665 860	1155 1500	2125 2745	3620	3730	4120	90	1500
