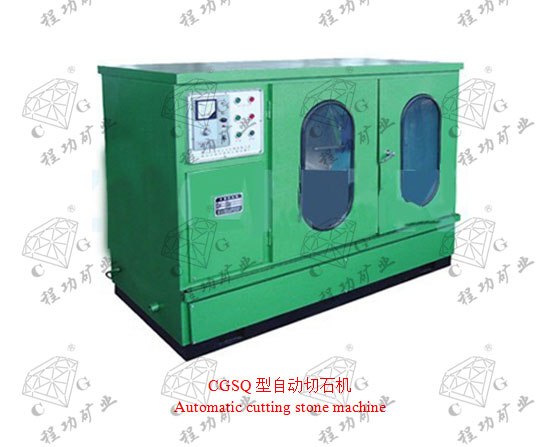

CGSQ型自動切石機用途：
Purpose of Automatic Stone Cutting Machine Model CGSQ:
全密封、低噪音,自動切割且切割速度可調 ,可快進快退,自動后退.采用大直徑450-800mm 金剛石刀片,可同時切割兩平行的平面,兩平面距離可調.
Full enclosed, low noise, automatic cutting at variable speed; fast forward and backward movement available; 450-800mm large diameter diamond blade for synchronous cutting of planes in parallel; the distance between the two planes is adjustable.
CGSQ型自動切石機特點：
Features of Automatic Stone Cutting Machine Model CGSQ:
全密封、低噪音,自動切割且切割速度可調,可快進快退,自動后退.采用大直徑450-800mm金剛石刀片,可同時切割兩平行的平面,兩平面距離可調.
Full enclosed, low noise, automatic cutting at variable speed; fast forward and backward movement available; 450-800mm large diameter diamond blade for synchronous cutting of planes in parallel; the distance between the two planes is adjustable.
| 型號規格 | SCQ-1A型 | SCQ-4A型 | SCQ-5A型 | |
|---|---|---|---|---|
| ****可切高度 | mm | ￠170 170mm | ￠210 210mm | ￠300 300mm |
| 金剛石切刀 | mm | ￠485×￠55×3.5 | ￠585×￠55×3.6 | ￠800×￠55×5 |
| 工作形式 | 單、雙刀切割兩平面 | 單、雙刀切割兩平面 | 單刀切割 | |
| 主電機 | Y112M-4KW | Y112M-4KW | ||
| 切刀線速度 | m/s | 33-55 | ||
| 工進速度 | 電控調速 | |||
| 噪音 | dB | ≤80 | ||
| 外形尺寸 | mm | 1650×880×1200 | ||
| 質量 | kg | 750 | ||
