磨片機、拋光機適用于科研院校、廠礦試驗室試樣切割后研磨拋光、試樣光譜分析前準備工作。結構有自動除塵、自動回收研磨砂等特點。They serve polishing after sample cutting and preparing before sample spectroscopic analysis in the laboratory of institutes, factories and
磨片機、拋光機適用于科研院校、廠礦試驗室試樣切割后研磨拋光、試樣光譜分析前準備工作。結構有自動除塵、自動回收研磨砂等特點。
They serve polishing after sample cutting and preparing before sample spectroscopic analysis in the laboratory of institutes, factories and mines. They can automatically remove dust and recover grinding sand and so on.
磨片機、拋光機技術參數 Lapping machine and polishing machine
| 型號規格Model | 磨盤直徑 grinding disc diameter | 轉速 Rotational speed | 功率 Power | 外形尺寸 Overall dimension | 質量 Weight |
|---|---|---|---|---|---|
| mm | r/min | kw/v | mm | kg | |

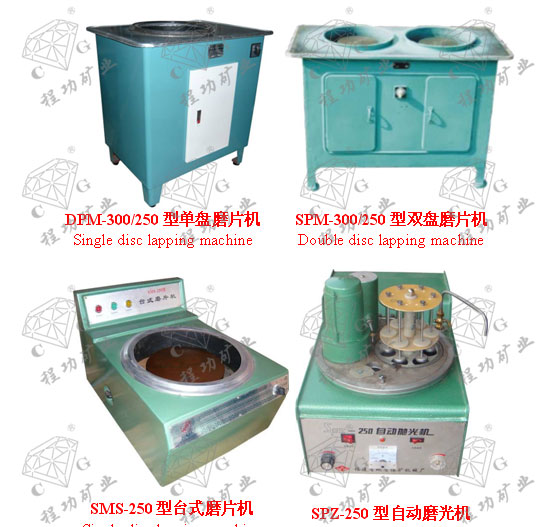

| SMS-250臺式磨片機 Table lapping machine | Φ250 | 500-1000 | 0.6/380 | 446×635×407 | 64 |
| DPM-250單盤磨片機 Single disc lapping machine | Φ250 | 800-1200 | 1.1/380 | 820×610×980 | 160 |
| DPM-300單盤磨片機 Single disc lapping machine | Φ300 | 800-1200 | 1.1/380 | 820×610×980 | 164 |

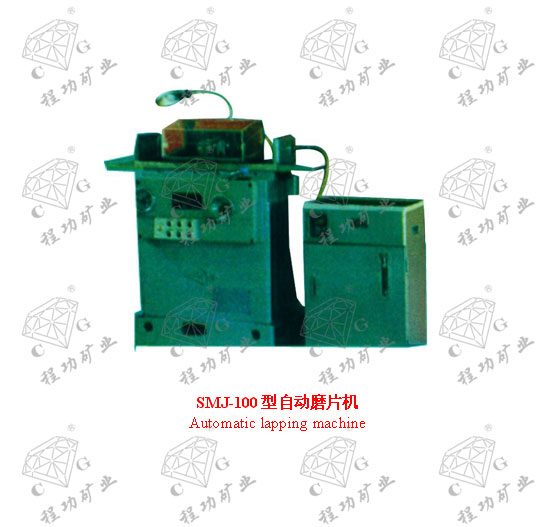

| SMJ-100自動磨片機 automatic lapping machine | Φ100 | 4800 | 1.1/380 | 1130×860×1130 | 550 |
| SPM-250雙盤磨片機 Double disc lapping machine | Φ250 | 800-1200 | 1.1/380 | 1296×606×946 | 210 |
| SPM-300雙盤磨片機 Double disc lapping machine | Φ300 | 800-1200 | 1.1/380 | 1296×606×946 | 210 |
| SM400Ⅰ雙盤磨樣機 Double disc polishing machine | Φ400 | 1400-2850 | 1.5/380 | 1000×500×800 | 180 |
| SM400Ⅱ雙盤磨樣機 Double disc polishing machine | Φ400 | 1400-2850 | 1.5/380 | 1000×500×900 | 175 |
| SM200自動雙盤磨樣機 Automatic double disc polishing machine | Φ200 | 1400 | 1.5/380 | 1296×606×946 | 90 |
| SKM-160自動磨塊機 Sutomatic polishing machine | Φ160 | 3200 | 1.1//380 | 1660×990×1210 | 1180 |
| SPT-250調速拋光機 Polishing machine | Φ250 | 0-1000 | 0.355/220 | 600×360×356 | 40 |
| SPZ-250自動拋光機 Automatic polishing machine | Φ250 | 0-1000 | 0.355/220 | 600×360×438 | 50 |
| MPW-150萬能磨拋機 Polishing machine | Φ150 | 0-500 | 0.355/220 | 600×360×356 | 50 |

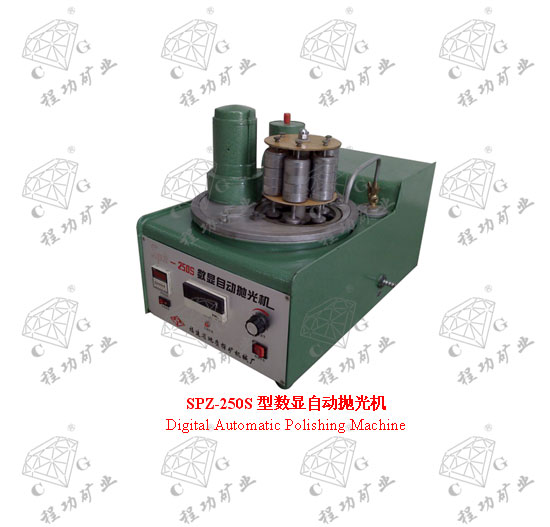

| SPZ-250S數顯自動拋光機 Digital Automatic Polishing Machine | Φ250 | 0-1000 | 0.355/220 | 600×360×356 | 50 |
