切片機適用于地質、冶金、建材、煤炭、石油等工業實驗室切取礦樣及其他材料如玻璃、陶瓷、玉石、石英、金屬試樣切片。本產品由原地礦部唯一指定企業生產行業標準。

It serves to slice mineral sample in industrial laboratory of geology, metallurgy, building materials, coal and petroleum and so on. It also serves to slice other materials, such as glass, ceramics, jade, quartz and metal

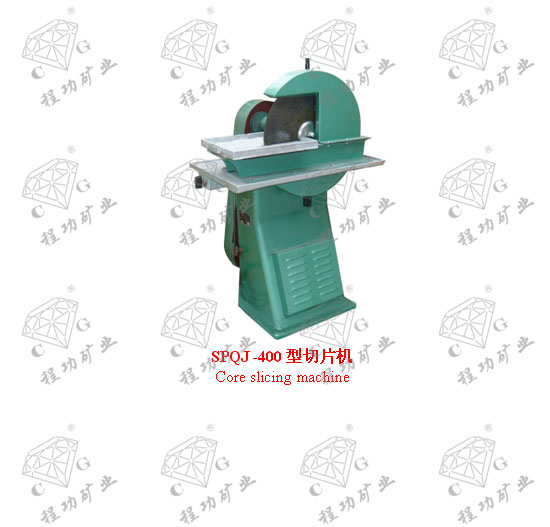

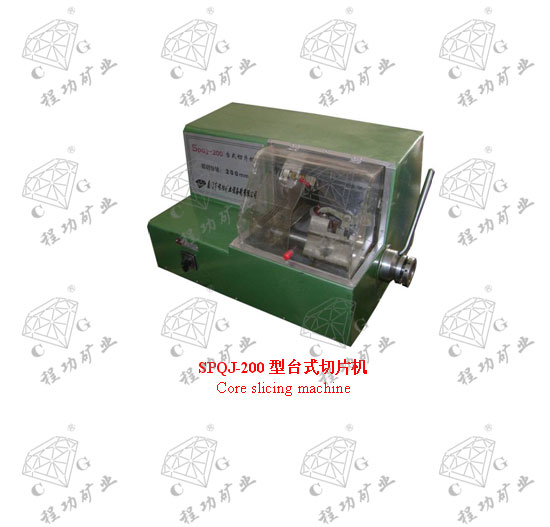

切片機技術參數  Core slicing machine

型號規格Model	單位Uite	SPQJ-200臺式	SPQJ-300	SPQJ - 400
金剛石刀片尺寸 Diamond blade sinze	mm	Φ200	Φ300	Φ400
刀片線速度 Blade linear speed	m/s	29	20-40	20
切割尺寸 Slicing dimension	mm	Φ15-Φ45 35×40	****60×70	100×100
功率 Power	kw/V	0.55/380	（0.8/1.1）/380	1.1/380
外形尺寸 Overall dimensions	mm	720×515×415	825×800×1105	865×560×1010
質量 Weight	kg	95	190	110
