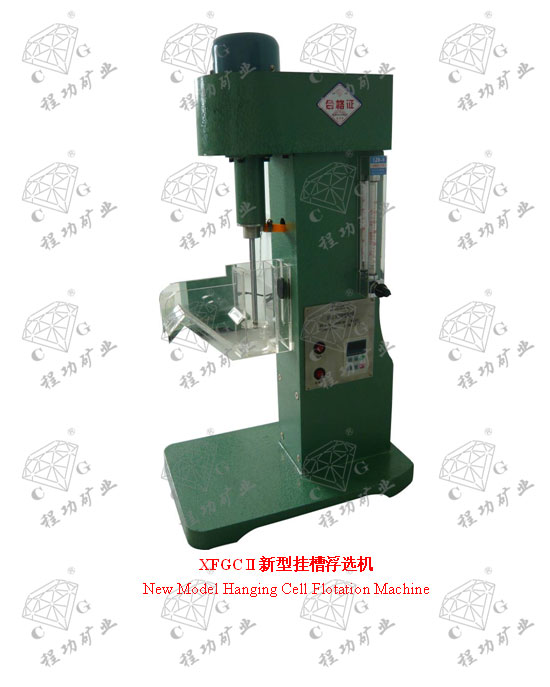

試驗室XFGCⅡ新型充氣掛槽浮選機技術參數 Tec

XFGC型充氣掛槽浮選機用于攪拌、擦洗、分離和精選少量礦樣等。設計中空軸具有充氣量大，中心充氣，變頻器無級調速，浮選速度快，選別指標好等特點。

XFGC Model Aeration Hanging Cell Flotation Machine is used for agitation , separation, scrubbing and cleaning of minor samples. The axial structure in the design features large capacity of aeration, central aeration, stepless speed governing of inverter, rapid speed of flotation, desirable separation indexes and others.

XFGCⅡ新型充氣掛槽浮選機是XFGC型充氣掛槽浮選機更新換代產品它它采用變頻技術，葉輪無級調速，數字顯示，調整精確，運轉可靠。XFGCⅡ型充氣掛槽浮選機采用外充氣裝置，充氣可調、準確穩(wěn)定。

New model XFGCⅡAeration Hanging Cell Flotation Machine is a updated product of XFGC Aeration Hanging Cell Flotation Machine, adopting frequency conversion technology, stepless speed governing of impeller digital display with accurate adjustment and reliable operation. XFGCⅡ Model Aeration Hanging Cell Flotation Machine uses the external aeration device with adjustment of aeration, accuracy and reliability.

型號規(guī)格 Model	容量 Capa.	選槽容積 Volume	葉輪直徑 Impeller diameter	葉輪轉速 Impeller speed	給礦粒度 Particle Size	功率 motor Power	質量 Weight
型號規(guī)格 Model	g	L	mm	r/min	mm	w	kg
XFGCⅡ 5 -35克	5、15 25、35	20、60 100、140	Φ18、Φ24、Φ28	≤2600	≤0.2	90	25
XFGCⅡ 50 -100克	50、100	200、400	Φ34、Φ36	≤2600	≤0.2	90	30
