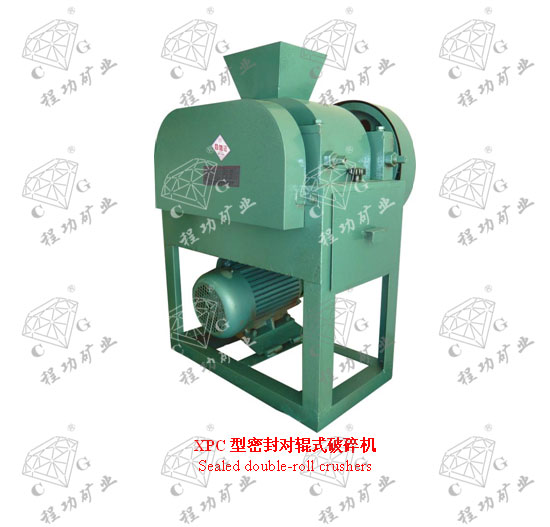

試驗室XPC型密封式對輥破碎機技術參數
Technical Parameter of laboratory sealed double-roll crushers

適用于礦山、冶金、地質、建材、科研單位實驗室粉碎礦物化驗使用。本產品由原地礦部唯一指定企業生產，執行行業標準。

Laboratory sealed double-roll crusher is applicable to assay of comminuted minerals in labs. of research institutes for mine, metallurgy ,geology and building material industries. The product is produced by the only enterprise designated by the former Ministry of Geology and Mineral Resources, in compliance with the Industrial standards.

本機由機體、輥輪等部件組成。電動機通過三角皮帶傳動主軸輪使輥輪按照已調好的軌跡進行運轉，將破碎腔機物料破碎。

This machine is composed of body, roller, etc. The motor drives the main shaft wheel through the V-belt to get the main shaft wheel to move along the already adjusted track so as to crush the materials in the crushing cavity.

本機體前后裝有調整螺桿，在機架左右側面裝有防護罩，以保證安全，在機體上裝有道槽及軸承座、軸承座可隨時注入機油。前方裝有手輪、鏈輪能、鏈條，后方裝有彈簧便于調節，一般情況請不予調節。調節時注意平行，以免出現設備故障保證安全使用權用。

This machine is equipped with adjusting screws in its front and end as well as protective cover on the left, right, and sizes of the frame, to ensure safety. It is also equipped with channel slot and bearing pedestal. Engine oil can be infused to the bearing pedestal at any time. Its front is equipped with hand wheel, chain wheel and chains. Its rear is equipped with spring, making it easy for adjustment (no adjustment shall be made normally). During adjustment, they shall be made parallel, so as to avoid equipment failure and ensure safe use.
